Image Steganography

Definitions

Steganography

Hiding data within another data

Demo

Greyscale & Greyscale

Hiding greyscale inside greyscale
Use the 4 MSB of the right image (barbara) into the 4 LSB of the left image (lenna)

Cover image (167.5KiB) and secret image (198.1 KiB)

Steganographed image (128.0 KiB)

Recovered images (57.4 KiB and 77.7 KiB)

Number of Bits Set in Original


	4 MSB	4 LSB
Lenna	508627	524192
Barbara	501361	526439

Slight artifact in the steganographed image
Recovered image show slight degredation in quality
Recovered images are much smaller than the original due to losing 4 bits of data per pixel
Steganographed image much smaller than the original two inputs due to the fact that MSB bit data doesn’t get set as much compared to the LSB

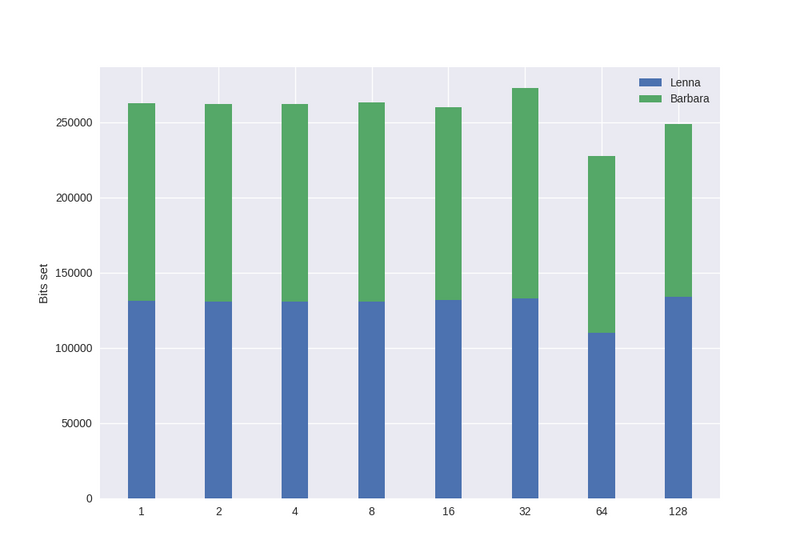

Graph above shows that the 7th bit (64) gets set significantly less compared to the other bits.
The 7th bit gets set between the digits 64 - 127 and 192 - 255
Makes sense why it gets set less since 192 - 255 range bracket is very bright and the images above are portraits in moderate lighting

-----------------

Greyscale & QR Code

Hiding QR code inside greyscale
Only requires 1 bit per pixel

Cover image (167.5KiB) and secret image (6.7 KiB)

Steganographed image (152.9 KiB)

Recovered images (135.8 KiB and 4.0 KiB)

hardly any difference in the steganographed and recovered images
only the LSB was modified, which can only change the value of the pixel by 1
Reconstructed QR code smaller than the original due to the fact that the original is written in RGBA compared to the reconstructed written in greyscale + png compression

-----------------

RGB & RGB

Hiding RGB inside RGB
Use the 4 MSB of the right image (barbara) into the 4 LSB of the left image (lenna)

Cover image (521.1 KiB) and secret image (602.3 KiB)

Steganographed image (400.8 KiB)

Recovered images (185.2 KiB and 238.3 KiB)

TL corner of the greyscale steganographed and RGB steganographed image

Both the greyscale and rgb steganographed image shows artifacts but it is clearer in the rgb image the mix from the secret image. If you look close enough you can spot the stacked books from the secret image
A lot more data lost when extracted compared to the greyscale as there are now 3 channels to deal with per pixel

-----------------

RGB & RGB randomised

Hiding RGB inside RGB randomly
Use the 4 MSB of the right image (barbara) into the 4 LSB of the left image (lenna)

Cover image (521.1 KiB) and secret image (602.3 KiB)

Steganographed image (567.6 KiB)

Recovered images (185.2 KiB and 238.3 KiB)

TL corner of the RGB steganographed and RGB random steganographed image

The steganographed image avoids traceable artifacts by randomising the secret image into the cover image
The artifact books found in the rgb steganographed image is absent in the rgb randomised steganographed image
Image is randomised by setting the seed
Need the seed number to extract the image
Steganographed random image is noticeably larger than the normally steganographed image due to inefficient png compression due to the random nature of the 4 LSB secret data

Appendix

# Basic example of greyscale steganography
import math
import cv2
import numpy as np

MSB_4 = 0b11110000
LSB_4 = 0b00001111
lenna   = cv2.imread("lenna.png",   cv2.IMREAD_GRAYSCALE)
barbara = cv2.imread("barbara.png", cv2.IMREAD_GRAYSCALE)

row, col = lenna.shape

mixed = np.zeros([row, col, 1])
# hide barbaras 4 MSB in lennas 4 LSB
for i in range(row):
    for j in range(col):
        mixed[i, j, 0] = (lenna[i,j] & MSB_4) | \
                         (barbara[i,j] >> 4)

# write the steganographed image
cv2.imwrite("mixed.png", mixed)

lenna_re   = np.zeros([row, col, 1])
barbara_re = np.zeros([row, col, 1])

for i in range(row):
    for j in range(col):
        lenna_re[i,j,0]   =  int(mixed[i,j,0]) & MSB_4
        barbara_re[i,j,0] = (int(mixed[i,j,0]) & LSB_4) << 4

cv2.imwrite("lenna_re.png",   lenna_re)
cv2.imwrite("barbara_re.png", barbara_re)

# Example of randomly hiding the secret image into
# the cover image
import math
import cv2
import numpy as np
import random

MSB_4 = 0b11110000
LSB_4 = 0b00001111
SEED = 10

lenna   = cv2.imread("lenna_rgb.png")
barbara = cv2.imread("barbara_rgb.png")

row, col, dep = lenna.shape

mixed = np.zeros([row, col, dep])

random.seed(SEED)
numbers = list(range(0, row*col))

# Mappings for the sercet image
index_pixel = random.sample(numbers, len(numbers))
pixel_index = {v: i for i, v in enumerate(index_pixel)}

b, g, r = cv2.split(barbara)
b = b.reshape(row*col)
g = g.reshape(row*col)
r = r.reshape(row*col)

index = 0
# hide barbaras 4 MSB in lennas 4 LSB
for i in range(row):
    for j in range(col):
        mixed[i, j, 0] = (lenna[i,j,0] & MSB_4) | \
                         (b[index_pixel[index]] >> 4)
        mixed[i, j, 1] = (lenna[i,j,1] & MSB_4) | \
                         (g[index_pixel[index]] >> 4)
        mixed[i, j, 2] = (lenna[i,j,2] & MSB_4) | \
                         (r[index_pixel[index]] >> 4)
        index += 1

# write the steganographed image
cv2.imwrite("mixed_rgb_rand.png", mixed)

lenna_re = np.zeros([row, col, dep])
barb_re  = np.zeros([row, col, dep])

b, g, r = cv2.split(mixed)
b = b.reshape(row*col)
g = g.reshape(row*col)
r = r.reshape(row*col)

index = 0
for i in range(row):
    for j in range(col):
        lenna_re[i,j,0]   =  int(mixed[i,j,0]) & MSB_4
        lenna_re[i,j,1]   =  int(mixed[i,j,1]) & MSB_4
        lenna_re[i,j,2]   =  int(mixed[i,j,2]) & MSB_4
        barb_re[i,j,0] = (int(b[pixel_index[index]]) & LSB_4) \
                             << 4
        barb_re[i,j,1] = (int(g[pixel_index[index]]) & LSB_4) \
                             << 4
        barb_re[i,j,2] = (int(r[pixel_index[index]]) & LSB_4) \
                             << 4
        index += 1

cv2.imwrite("lenna_rgb_rand_re.png",   lenna_re)
cv2.imwrite("barbara_rgb_rand_re.png", barb_re)

Written on July 28, 2024
